PuzzlePark

PuzzlePark is a multilevel parking system having vertical as well as horizontal motion. All PuzzlePark models are driven using hydraulic cylinders for vertical movement and traction based system for horizontal movement. PuzzlePark is controlled by a PLC based controller. PuzzlePark models are available in various dimensions to suit specific requirements. Each platform is given a number. Operator panel has a numerical keypad after entering the number and confirming the same, PuzzlePark operates to bring the respective platform to the entry level. Once a platform is at entry level, car can be parked or driven out. Entry/exit is required at the entry level of every grid. One space has to be kept empty in every module of PuzzlePark for its operation.

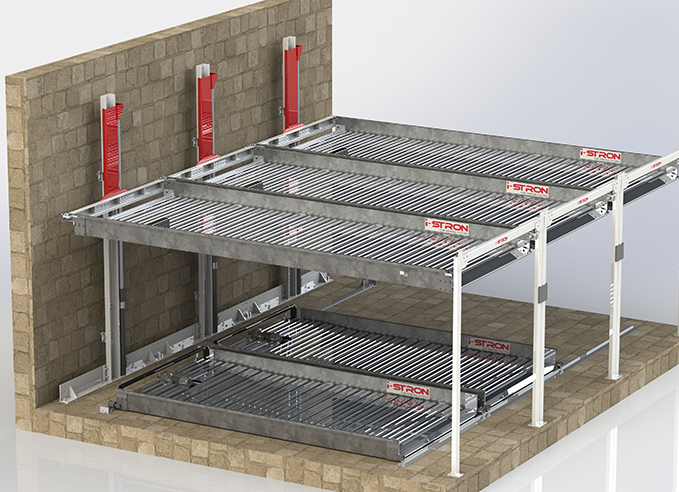

2IC

2IC PuzzlePark has 2 levels viz entry and upper. Entry-level platforms are driven horizontally using a motor connected to traction. Upper level platforms are driven vertically using individual cylinders connected...

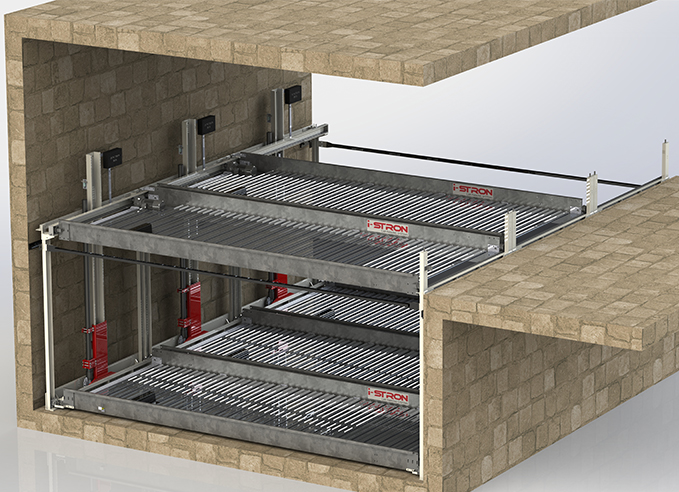

2HC

2HC PuzzlePark has 2 levels viz entry and pit. Entry-level platforms are driven horizontally using a motor connected to traction. Pit level platforms are driven vertically using individual cylinders connected to each platform...

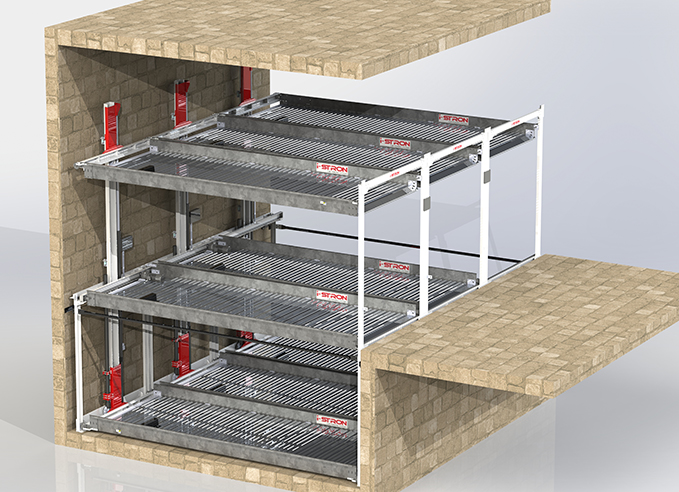

3IC

3IC PuzzlePark has 3 levels viz entry, upper and pit. Entry-level platforms are driven horizontally using a motor connected to traction. Upper and Pit level platforms are driven vertically using individual cylinders...

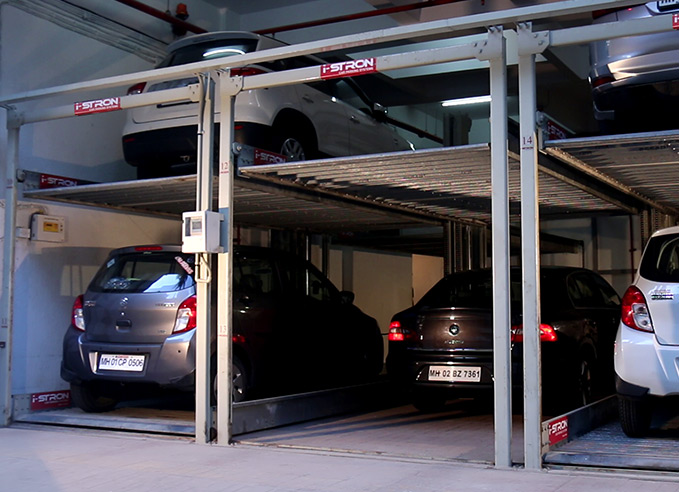

2TC

2TC PuzzlePark is 2IC PuzzlePark used in combination with any of the 3 PuzzlePark viz 2IC, 2HC and 3IC in drive through manner. It is typically used when drive way is at one side and parking is to be organized...

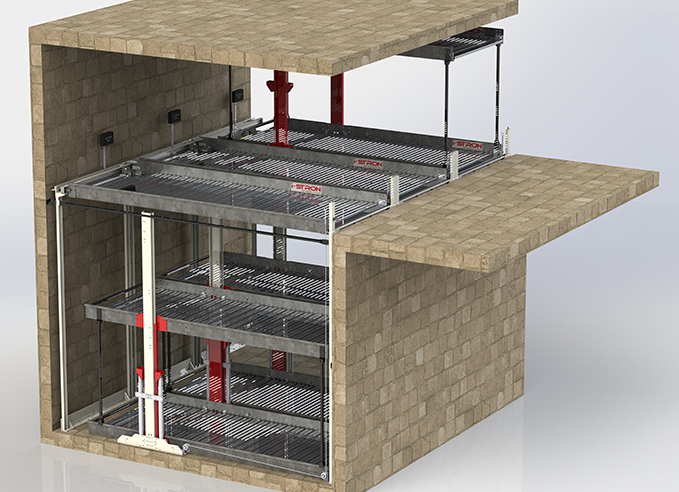

3RC

3RC PuzzlePark has 3 levels viz entry, middle and lower. Entry-level platforms are driven horizontally using a motor connected to traction. Middle and Lower level platforms are driven vertically...
